KATMINOを解くメインのプログラムの準備 (KATAMINOを解くプログラムを作成する)

★前回の記事

yucatio.hatenablog.com

KATAMINOを解くメインのプログラムを作成します。 ディレクトリとhtmlファイルを用意しましょう。

KATAMINO-SOLVERフォルダの下に KATAMINO-SOLVER-mainという名前のフォルダを作成してください。

その下に index.htmlファイルを作成し、以下の内容を書き込んで保存します。

<!DOCTYPE html>
<html>
  <head>
    <meta charset="utf-8">
    <title>KATAMINO SOLVER</title>
  </head>
  <body>
    <script src="js/util.js"></script>
    <script src="js/katamino-arr.js"></script>
    <script src="js/solver.js"></script>
    <script src="js/main.js"></script>
  </body>
</html>

KATAMINO-mainフォルダの下に、jsフォルダを作成し、 その下にmain.jskatamino-arr.jssolver.jsutil.jsという名前の空のファイルを作成します。

それぞれのファイルは以下の用途で使用します。

ファイル 用途
main.js メインのプログラムを記載する
katamino-arr.js KATAMINOのピースのスピン情報を格納した配列を記載する
solver.js KATAMINOを解くプログラムを記載する
util.js ユーティリティ関数を記載する

ディレクトリ構成はこのようになっています。

KATAMINO-SOLVER/
  |_ KATAMINO-SOLVER-main/
  |   |_ index.html
  |   |_ js/
  |       |_ katamino-arr.js
  |       |_ main.js
  |       |_ solver.js
  |       |_ util.js
  |_ KATAMINO-SOLVER-preparation/
      |_ ....

KATAMINOのスピン情報を持つ配列の準備

js/katamino-arr.jsファイルに、KATAMINO-SOLVER-preparation/index.html で画面に表示された内容をコピーします。 手動コピーはかなり良くない方法だとは思いますが、他によい方法が見当たりませんでした。

f:id:yucatio:20190721171338p:plain

js/katamino-arr.js

const KATAMINO_ARR = [[[{"x":0,"y":0},{"x":0,"y":1},{"x":0,"y":2},{"x":0,"y":3},{"x":0,"y":4}],[{"x":0,"y":0},{"x":1,"y":0},{"x":2,"y":0},{"x":3,"y":0},{"x":4,"y":0}]],[[{"x":0,"y":0},{"x":0,"y":1},{"x":0,"y":2},{"x":0,"y":3},{"x":1,"y":0}],[{"x":0,"y":0},{"x":1,"y":0},{"x":2,"y":0},{"x":3,"y":0},{"x":3,"y":1}],[{"x":0,"y":3},{"x":1,"y":0},{"x":1,"y":1},{"x":1,"y":2},{"x":1,"y":3}],[{"x":0,"y":0},{"x":0,"y":1},{"x":1,"y":1},{"x":2,"y":1},{"x":3,"y":1}],[{"x":0,"y":0},{"x":1,"y":0},{"x":1,"y":1},{"x":1,"y":2},{"x":1,"y":3}],[{"x":0,"y":1},{"x":1,"y":1},{"x":2,"y":1},{"x":3,"y":0},{"x":3,"y":1}],[{"x":0,"y":0},{"x":0,"y":1},{"x":0,"y":2},{"x":0,"y":3},{"x":1,"y":3}],[{"x":0,"y":0},{"x":0,"y":1},{"x":1,"y":0},{"x":2,"y":0},{"x":3,"y":0}]],[[{"x":0,"y":0},{"x":0,"y":1},{"x":0,"y":2},{"x":0,"y":3},{"x":1,"y":1}],[{"x":0,"y":0},{"x":1,"y":0},{"x":2,"y":0},{"x":2,"y":1},{"x":3,"y":0}],[{"x":0,"y":2},{"x":1,"y":0},{"x":1,"y":1},{"x":1,"y":2},{"x":1,"y":3}],[{"x":0,"y":1},{"x":1,"y":0},{"x":1,"y":1},{"x":2,"y":1},{"x":3,"y":1}],[{"x":0,"y":1},{"x":1,"y":0},{"x":1,"y":1},{"x":1,"y":2},{"x":1,"y":3}],[{"x":0,"y":1},{"x":1,"y":1},{"x":2,"y":0},{"x":2,"y":1},{"x":3,"y":1}],[{"x":0,"y":0},{"x":0,"y":1},{"x":0,"y":2},{"x":0,"y":3},{"x":1,"y":2}],[{"x":0,"y":0},{"x":1,"y":0},{"x":1,"y":1},{"x":2,"y":0},{"x":3,"y":0}]],[[{"x":0,"y":0},{"x":0,"y":1},{"x":0,"y":2},{"x":1,"y":2},{"x":1,"y":3}],[{"x":0,"y":1},{"x":1,"y":0},{"x":1,"y":1},{"x":2,"y":0},{"x":3,"y":0}],[{"x":0,"y":0},{"x":0,"y":1},{"x":1,"y":1},{"x":1,"y":2},{"x":1,"y":3}],[{"x":0,"y":1},{"x":1,"y":1},{"x":2,"y":0},{"x":2,"y":1},{"x":3,"y":0}],[{"x":0,"y":2},{"x":0,"y":3},{"x":1,"y":0},{"x":1,"y":1},{"x":1,"y":2}],[{"x":0,"y":0},{"x":1,"y":0},{"x":1,"y":1},{"x":2,"y":1},{"x":3,"y":1}],[{"x":0,"y":1},{"x":0,"y":2},{"x":0,"y":3},{"x":1,"y":0},{"x":1,"y":1}],[{"x":0,"y":0},{"x":1,"y":0},{"x":2,"y":0},{"x":2,"y":1},{"x":3,"y":1}]],[[{"x":0,"y":0},{"x":0,"y":1},{"x":0,"y":2},{"x":1,"y":0},{"x":2,"y":0}],[{"x":0,"y":0},{"x":1,"y":0},{"x":2,"y":0},{"x":2,"y":1},{"x":2,"y":2}],[{"x":0,"y":2},{"x":1,"y":2},{"x":2,"y":0},{"x":2,"y":1},{"x":2,"y":2}],[{"x":0,"y":0},{"x":0,"y":1},{"x":0,"y":2},{"x":1,"y":2},{"x":2,"y":2}]],[[{"x":0,"y":0},{"x":0,"y":1},{"x":0,"y":2},{"x":1,"y":0},{"x":1,"y":1}],[{"x":0,"y":0},{"x":1,"y":0},{"x":1,"y":1},{"x":2,"y":0},{"x":2,"y":1}],[{"x":0,"y":1},{"x":0,"y":2},{"x":1,"y":0},{"x":1,"y":1},{"x":1,"y":2}],[{"x":0,"y":0},{"x":0,"y":1},{"x":1,"y":0},{"x":1,"y":1},{"x":2,"y":1}],[{"x":0,"y":0},{"x":0,"y":1},{"x":1,"y":0},{"x":1,"y":1},{"x":1,"y":2}],[{"x":0,"y":1},{"x":1,"y":0},{"x":1,"y":1},{"x":2,"y":0},{"x":2,"y":1}],[{"x":0,"y":0},{"x":0,"y":1},{"x":0,"y":2},{"x":1,"y":1},{"x":1,"y":2}],[{"x":0,"y":0},{"x":0,"y":1},{"x":1,"y":0},{"x":1,"y":1},{"x":2,"y":0}]],[[{"x":0,"y":0},{"x":0,"y":1},{"x":0,"y":2},{"x":1,"y":0},{"x":1,"y":2}],[{"x":0,"y":0},{"x":0,"y":1},{"x":1,"y":0},{"x":2,"y":0},{"x":2,"y":1}],[{"x":0,"y":0},{"x":0,"y":2},{"x":1,"y":0},{"x":1,"y":1},{"x":1,"y":2}],[{"x":0,"y":0},{"x":0,"y":1},{"x":1,"y":1},{"x":2,"y":0},{"x":2,"y":1}]],[[{"x":0,"y":0},{"x":0,"y":1},{"x":1,"y":1},{"x":2,"y":1},{"x":2,"y":2}],[{"x":0,"y":2},{"x":1,"y":0},{"x":1,"y":1},{"x":1,"y":2},{"x":2,"y":0}],[{"x":0,"y":1},{"x":0,"y":2},{"x":1,"y":1},{"x":2,"y":0},{"x":2,"y":1}],[{"x":0,"y":0},{"x":1,"y":0},{"x":1,"y":1},{"x":1,"y":2},{"x":2,"y":2}]],[[{"x":0,"y":0},{"x":0,"y":1},{"x":1,"y":1},{"x":1,"y":2},{"x":2,"y":1}],[{"x":0,"y":1},{"x":1,"y":0},{"x":1,"y":1},{"x":1,"y":2},{"x":2,"y":0}],[{"x":0,"y":1},{"x":1,"y":0},{"x":1,"y":1},{"x":2,"y":1},{"x":2,"y":2}],[{"x":0,"y":2},{"x":1,"y":0},{"x":1,"y":1},{"x":1,"y":2},{"x":2,"y":1}],[{"x":0,"y":1},{"x":1,"y":1},{"x":1,"y":2},{"x":2,"y":0},{"x":2,"y":1}],[{"x":0,"y":1},{"x":1,"y":0},{"x":1,"y":1},{"x":1,"y":2},{"x":2,"y":2}],[{"x":0,"y":1},{"x":0,"y":2},{"x":1,"y":0},{"x":1,"y":1},{"x":2,"y":1}],[{"x":0,"y":0},{"x":1,"y":0},{"x":1,"y":1},{"x":1,"y":2},{"x":2,"y":1}]],[[{"x":0,"y":0},{"x":0,"y":1},{"x":0,"y":2},{"x":1,"y":1},{"x":2,"y":1}],[{"x":0,"y":0},{"x":1,"y":0},{"x":1,"y":1},{"x":1,"y":2},{"x":2,"y":0}],[{"x":0,"y":1},{"x":1,"y":1},{"x":2,"y":0},{"x":2,"y":1},{"x":2,"y":2}],[{"x":0,"y":2},{"x":1,"y":0},{"x":1,"y":1},{"x":1,"y":2},{"x":2,"y":2}]],[[{"x":0,"y":0},{"x":0,"y":1},{"x":1,"y":1},{"x":1,"y":2},{"x":2,"y":2}],[{"x":0,"y":1},{"x":0,"y":2},{"x":1,"y":0},{"x":1,"y":1},{"x":2,"y":0}],[{"x":0,"y":0},{"x":1,"y":0},{"x":1,"y":1},{"x":2,"y":1},{"x":2,"y":2}],[{"x":0,"y":2},{"x":1,"y":1},{"x":1,"y":2},{"x":2,"y":0},{"x":2,"y":1}]],[[{"x":0,"y":1},{"x":1,"y":0},{"x":1,"y":1},{"x":1,"y":2},{"x":2,"y":1}]]]

KATAMINOを解くプログラムの準備

js/solver.jsファイルの準備をします。以下の内容を記載してください。

const solver = {
  init : (targetPiece) => {
    console.log("init start")
    console.log("targetPiece", targetPiece)
  },

  solve : () => {
    console.log("solve start")
  },
}

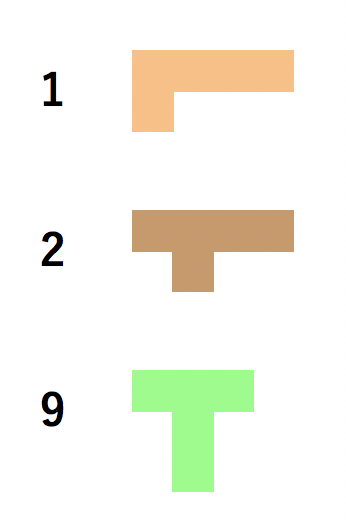

targetPieceは、KATAMINOを解く対象のピースの配列です。例えば、[1, 2, 9]であれば、以下の3つのピースです。

f:id:yucatio:20190721171620p:plain

ピースの番号とピースの形一覧は以下になります。

f:id:yucatio:20190721171738p:plain

main.jsの準備

solver.jsを呼び出すmain.jsの準備をします。

js/main.js

solver.init([1,2,9])

solver.solve()

動作確認

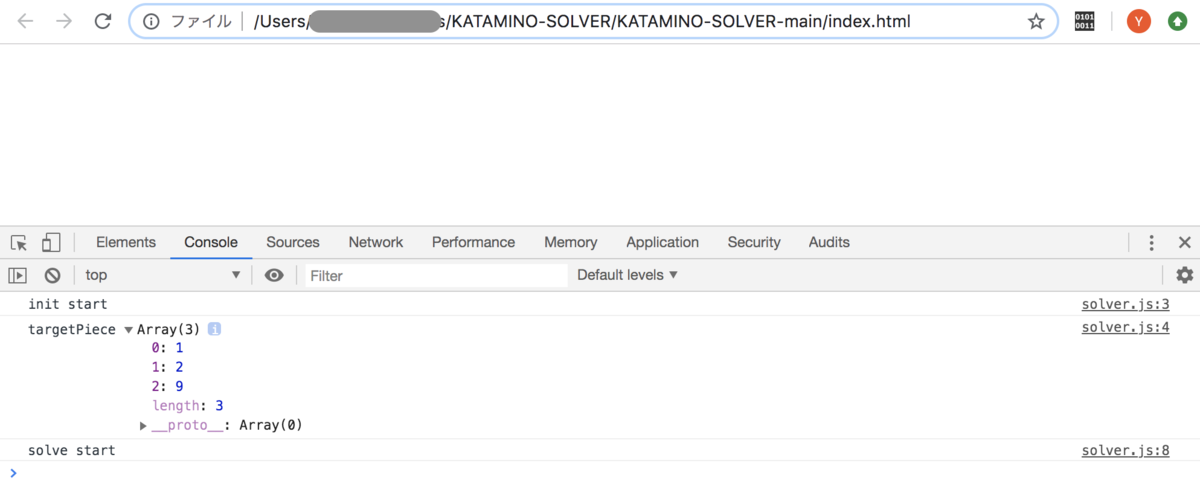

index.htmlを開きましょう。引き続きGoogle Cromeを使用します。 ディベロッパーツールを表示します。Windowsの場合はF12キー、Macの場合はCommandOptionIキーで開きます。 コンソールを開きます。以下のように表示されていれば成功です。

f:id:yucatio:20190721173110p:plain

以上でKATMINOを解くメインのプログラムの準備は完了です。
